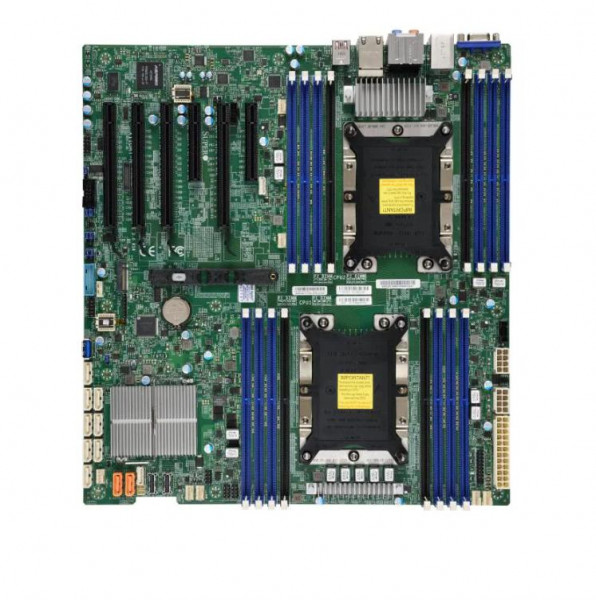

Mainboard Supermicro X11DAi-N

Form Factor: E-ATX
Kích thước: 12″ x 13″ (30.48cm x 33.02cm)
Kiểu dạng bộ nhớ: 2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes: LRDIMM: 64GB, 128GB; RDIMM: 64GB, 128GB
bảo hành 12 tháng
Dimensions
12″ x 13″ (30.48cm x 33.02cm)

Processor/Cache
CPU Intel® Xeon® Processor Scalable Family. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
System Memory
Memory Capacity Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C621
SATA
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with GbE from C621
Audio
7.1 HD Audio
Graphics
Aspeed AST2500 BMC

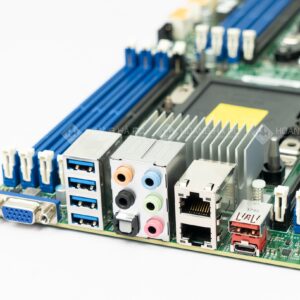

Input / Output
USB 4 USB 3.0 ports (4 rear via header(s)), 2 USB 3.1 ports (2 rear)
VideoOutput
1 VGA port(s)
Serial Port / Header
1 COM Port (1 header(s)
TPM
1 TPM Header
Others
Thunderbolt header for Thunderbolt 3.0 AOC support
Expansion Slots
PCI-Express 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
M.2
Interface: PCIe 3.0 x4 Form Factor: M-Key 2260, 2280, 22110
System BIOS
BIOS Type
UEFI 128M

Management
Software
Intel® Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby
FAN
8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring , Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
Temperature
N/A
LED
N/A
Other Features
Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
