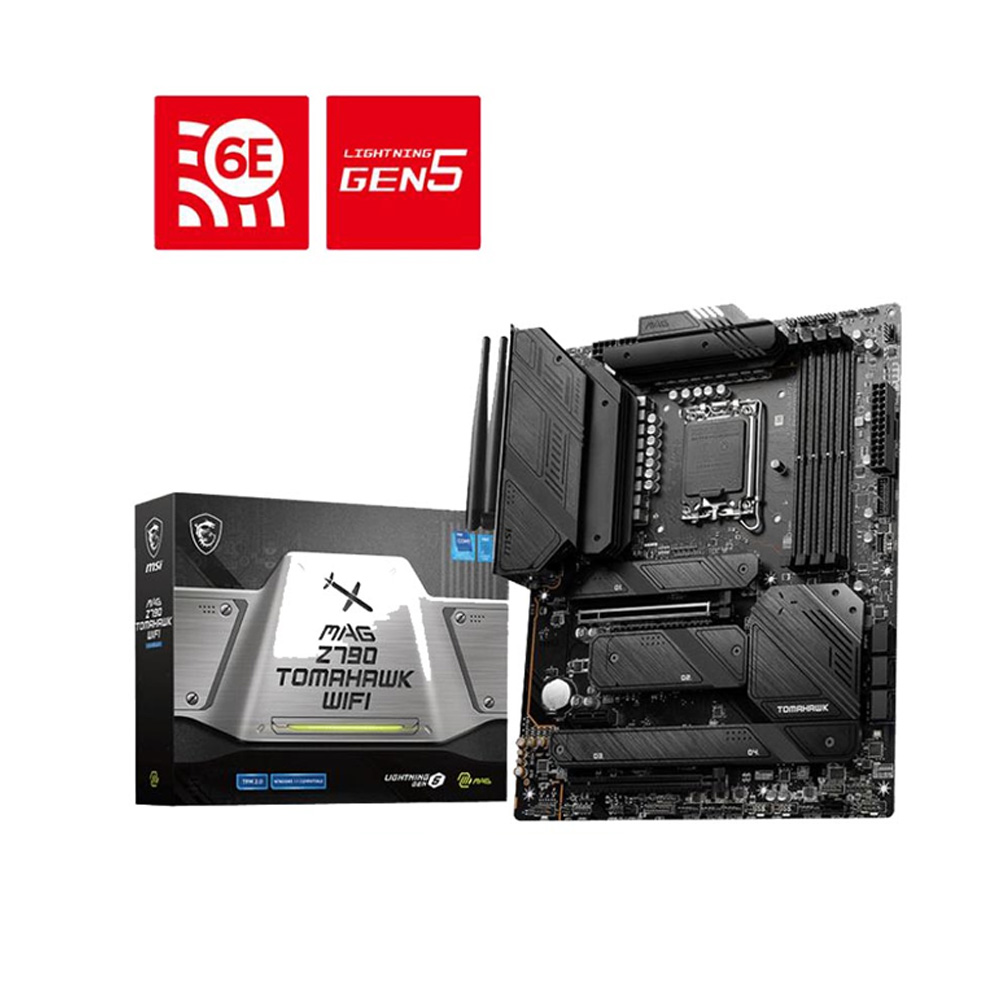

Mainboard MSI Z790 Tomahawk Wifi DDR5

Name: Mainboard MSI Z790 Tomahawk Wifi DDR5
SKU: 9371
Availability: InStock

Giá gốc là: 12.999.000₫.Giá hiện tại là: 7.899.000₫.

Socket: Hỗ trợ Intel thế hệ thứ 12,13, Pentium® Gold and Celeron® Processors
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 192GB)
Khe cắm mở rộng: 2x PCI-E x16 slot, 1x PCI-E x1 slot
Khe cắm ổ cứng: 4x M.2 slot, 7x SATA 6G port

Bảo hành : 36 tháng

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	MAG Z790 TOMAHAWK WIFI
CPU hỗ trợ	Intel
Chipset	INTEL Z790
RAM hỗ trợ	4x DDR5, Maximum Memory Capacity 192GB Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC) /5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz
Khe cắm mở rộng	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Ổ cứng hỗ trợ	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G port
Cổng kết nối (Internal)	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
BACK PANEL	DisplayPort 1.4 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port, HD Audio Connectors HDMI™ 2.1 Port Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 2×2 20Gbps Type-C Wi-Fi / Bluetooth Antenna Optical S/PDIF OUT
LAN / Wireless	Intel^® 2.5Gbps LAN Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA
Kích cỡ	ATX 243.84mmx304.8mm
